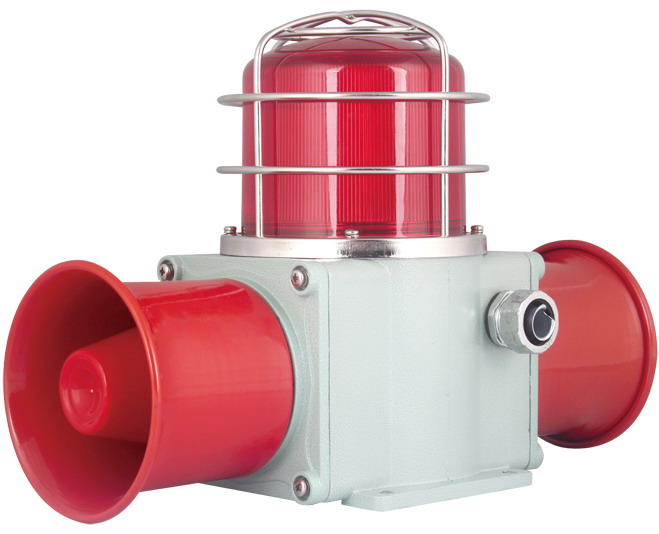

TLRHD2L-P Flashing light Dual horn, heavy-duty, marine sound and light alarm, industrial sound and light alarms, sirens, speakers, sound signaling device

Die-cast aluminum alloy casing / durable

LED bright light-emitting audible Max: 120DBX2

* Product Features

1.Dual speakers loud and clear alarm sound design, sturdy and durable industrial, heavy duty, marine products, arranged in opposite directions so that the voice heard more clearly in a different direction.

2.Using the latest technology independent design, the LED Steady / Flashing warning lights, lights and speaker combination constitute heavy-duty sound and light products

3.Aluminum base, sturdy and durable, waterproof and resistant to corrosion.

4.Products fitted with internal tone selector switch and volume control, the user can adjust the tone and volume of the corresponding size according to demand, detailed selection method in the table below

5.Multiple alarm tones to choose from. (WS-12 kinds of alarm tone) (WM-20 kinds of music + warning tone) (WV-10 kinds of voice recording)

6.Suitable for a variety of crane, driving, forklifts, cranes, cranes, transport equipment, ports, shipbuilding, machinery, iron and steel industry site, petrochemical industry, outdoor equipment, transportation and warehousing, etc.

7.Color shade:RED-R   YELLOW-Y    GREEN-G     BLUE-B

8.volume: Max.120dB×2dB/m                 LIGHT Shiny times: 60-80/mim

9.Material: Lens-PC, Body - die-cast aluminum, Speaker shell-PC

10.Protection class: IP56

11.This product according to customer demand for the installation of a protective cover, standard product does not contain the protective cover

12.Pictures of the product installation waterproof connectors, installation ships stuffing products can be customized

13.Remote control, light control, infrared control, power sound and light alarm sound and light alarm with batteries, and other special requirements of voice prompts can be customized

*Product Specifications

model

Built-in sound

voltage

current

weight

volume

color

TLRHD2L-P

WS-warning note 12

DC12V

2.353A

4.30Kg

120dB×2

RED-R

WP-12 special warning sound

DC24V

 1.987A

120dB×2

YELLOW-Y

WM-music 20 note

AC110V

 0.572A

4.57Kg

120dB×2

GREEN-G

WA-alarm 20 note

AC220V

 0.281A

120dB×2

BLUE-B

WV-voice channel 10

AC380V

0.197A

113dB×2

WHITE-W

Super bright LED (HL type) products, marine bronze housing products (Brass) and special products voltage (48V, 440V, etc.) can be customized

* Overall installation Fig.

Connection method

1. The AC power supply products: no points are negative, connect the power supply directly.

2. DC DC power supply products: black wire terminals connected to the negative (-).

3. In order to more secure connection, the power cord end use cold terminals "O" type "U" type

Customized products (type - LC) leads to the power cord and signal lines.

1. Draw out the power cord specification: UL1015 - NO18 2 c (0.75 sq) x 400 mm

2. Lead to signal wire specifications: UL1007 - NO. 22 (0.3 sq) 400 mm

*Selection and wiring tones

音色种类的选择方法

Standard form: - using internal switches

Optional form (LC): - use of external contact control

1. The products within the 12 species and 20 kinds of alarm music selection, standard product (using internal selection Voice selector switch) can take advantage of the type of tone selection switch (left) to select the tone

2. The method of using an external contact wiring selection tone is customized based products (-LC), refer to the type of items selected from the left sound.

The method of adjusting the size of the volume

1. This product has a volume control circuit board inside the device (left). Regulator in the clockwise direction of rotation, the volume increases, rotating counterclockwise direction to reduce the volume.

* Long bright lights / flashing selection

For the convenience of users, there is a mounting plate Steady / Flashing selection switch. I want to read the instructions carefully and refer to the product structure of the operation in the correct way.

1.Shade (protection network) separation: the fixed shade retaining ring (protection network) bolts (M4 screw 4EA) Unscrew isolated shade retaining ring (protection network) and shade, confirmed the long bright LED circuit board / Flashing switch. (As shown below)

2.Steady / Flashing selection switch action:

a). Using Steady / Flashing selection switch, select the desired action

b). L switch when the position steady. c). flashes when the LF position.

* Model Options

TLRHD2L     -

WS   -

220   -

R

 - P

 - LC

型号

Voice Category

Voltage

color

Protective

Sound choice

TLRHD2L (LED Long bright)

WS-warning note 12

12-DC12V

R(RED)

specification (None) without protection network products

No specification (None) internal selector switch

TLRHD2LF (LED Brilliant)

WP-12 special warning sound

24-DC24V

G(GREEN)

TLRHD2LR (LED Rotating light)

WM-music 20 note

110-AC110V

Y(YELLOW)

 -PSpecifies (Order) with protective mesh.R63

LC designated (Oder) External contact control

TLRHD2LS (LED Strobe)

WA-alarm 20 note

220-AC220V

B(BLUE)

TLRHD2HL (LED Super bright)

WV-voice channel 10

380-AC380V

W(WHITE)
