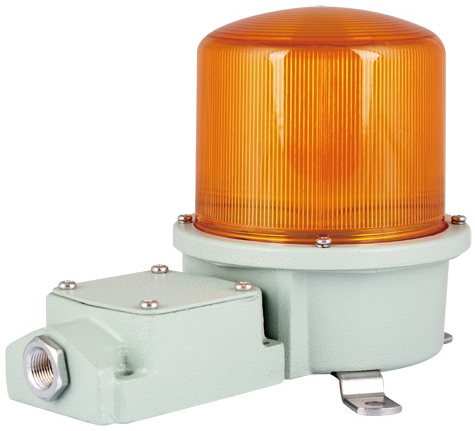

TLH1TLS heavy, LED strobe light, marine warning lights, warning lights, industrial warning lights, marine lights, Strobe

Die-cast aluminum alloy case/rugged

LED bright light emitting diode SERIES-125mm

Product Features

1. solid, durable industrial, heavy duty, marine warning products

2. the use of mirror-reflection technology to keep the light diffusion, glows more uniform designed, high brightness LED light/flashing warning lights, lights

3. die-cast aluminum alloy Base. waterproof corrosion-resistant, rugged and durable for industrial use, heavy load. marine warning products

4. the internal circuit board equipped with light emitting mode selection of products, users can choose according to demand long, shiny, detailed options shown in the table below

5. install stainless steel metal protection network according to user demand for the installation of junction box

6. suitable for all kinds of cranes, road, crane and conveyor equipment, ports, ship machinery, iron and steel industry, petrochemical industry, outdoor equipment, production lines and other industrial warning

7. lamp color: red yellow-Y green-G blue-R-B

8. shiny number: 60~80/MIM

9. volume: (when the internal buzzer), 90dB-Y32 (32 kind of beep codes -110dB)

10. base standard color: MUNSELL NO.7.5BG7/2

11. materials: Lampshade for PC, DIECAST body-die-cast aluminum Al, stainless steel guards-SUS316L, mirror-heat-resistant ABS

12. the technical certification: CE, KIMM, ABS

13. protection class: IP56.

14. this product can be installed to protect network according to customer demand, standard products do not contain protection network

15. photo products metal marine waterproof connectors. ship special stuffing products require customized

Product Specifications

model

Built-in sound

voltage

current

weight

flashe

Color

TLH1TL

BZ1(Continuous sound-90DB)

DC12V

 0.670A

1.39Kg

60-80Per/Min

RED-R

TLH1TLF

BZ2(Intermittent sound-90DB)

DC24V

 0.670A

YELLOW-Y

TLH1TLR

Y32(32 kinds of warning tone-110DB)

AC110V

 0.156A

1.87Kg

GREEN-G

TLH1TLS

AC220V

0.087A

BLUE-B

TLH1TS

AC380V

0.052A

White-W

Super bright LED (HL) product that ships with bronze shell products (Brass) and a special voltage (48V, 440V etc) can be customized, stainless steel guards (0.25kg)

* Overall installation diagram

* Wiring

Power cord into port (CABLE ENTRY)

1. waterproof connectors use either ships with stuffing

2. the mains inlet: standard: one-second PF

3. introduction PF three-fourths size can be made

Wiring

1.AC AC power supply: without polarity directly connected to the power.

2.DC DC power supply:-black terminal connected to the negative (-).

3. for a more secure connection, ends of the power cables using cold press terminal block "o", "u"

Customized products (-LC) leads to the power cord and signal cable.

1. lead power cord specification: UL1015-NO18 (0.75sq) x 2c

2. exit signal specifications: UL1007-NO.22 (0.3SQ) 400mm

* When using notes

1. this product is for outdoor use waterproof, dust-proof structure of the product, connect the power cord or other switches such as homework, when removed, the Assembly must be fixed bolt tightening all parts, ensure they are waterproof, dustproof performance.

2. power cord inlet IP56 for waterproofing joints or explosion-proof joints must be used, guarantee the sealing ability of products. Entrance of the enclosed power supply cable is not placed in the cold air outside, intrusion of foreign bodies such as damage due to moisture or dust.

3. using voltage than the rated voltage up or down too sharply will shorten the life or cause the product to adverse issues. Please ensure that the voltage at nominal voltage range within ± 5%.

4. the lamp housing or the surface of the body, when exposed to corrosive chemical substances can damage the product cause deformation or discoloration problems, users need to pay special attention to.

5. do not give the product strong impacts, which will cause damage to parts or circuit breaker

6. do not force drawn wires exposed on the product. Product failures due to this is one of them.

* Model Selection

TLH1TLS   -

Y32-

220   -

R

Model

Sound

Voltage

color

TLH1TL(Long bright)

BZ1(Continuous sound-90DB)

12-DC12V

RED-R

TLH1TLF(Brilliant)

BZ2(Intermittent sound-90DB)

24-DC24V

YELLOW-A

TLH1TLR(LED Rotating lights)

Y32(32 kinds of warning tone-110DB)

110-AC110V

GREEN-G

TLH1TLS(LED Frequency shiny)

220-AC220V

BLUE-B

TLH1TS (Xenon lamp)

380-AC380V

White-W
