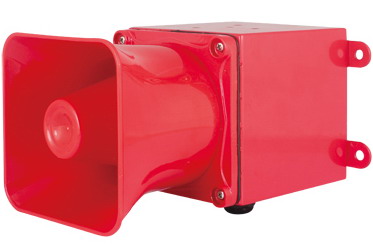

CS116WA-M industrial alarm, electronic buzzer, alarm horn, electric flute, voice signal speakers, sirens |
Cold rolled steel, spray housing / durable |
||||||
|
Electronic alarm, electric flute, electronic buzzer 120db |
|||||||
|
Product function is introduced |
|
||||||
|
1.Industrial warning alarm industry, large lifting machinery and other equipment running, Xiangqi, electronic buzzer siren |
|||||||
|
2.Multiple alarm tones to choose from .. (12 kinds of alarm tone) (20 kinds of music + warning tone) (WV10-10 kinds of voice recording) |
|||||||
|
3.Made of steel shell, strong and durable, convenient and easy to install |
|||||||
|
4.The appearance of novel structure, easy to operate, can work long hours, stable and reliable |
|||||||
|
5.Products fitted with internal tone selector switch and volume control, the user can adjust the tone and volume of the corresponding size according to demand, detailed selection method in the table below |
|||||||
|
6.Suitable for a variety of crane, driving, cranes, transport equipment, ports, shipbuilding, machinery, iron and steel industry site, construction machinery (road, crawler cranes, RTG, etc.), port machinery (gantry cranes, bridge cranes, etc.) Lifting sound equipment and other outdoor equipment alarm signal transmission. |
|||||||
|
7. Standard Body Color: Red -C (yellow -A, -B and blue colors can be customized according to the user) |
|||||||
|
8.volume : Max.120dB/m |
|||||||
|
9.Material: Steel -Steel Housing housing Speaker-PC |
|||||||
|
10.Protection class:. IP54 waterproof and dustproof, corrosion resistance can be used outdoors |
|||||||
|
11.Can be customized according to user needs voice broadcast, sound and light power failure alarm, rechargeable, special voice, shouted, audio, remote control, infrared, sound and light control and other functions. |
|||||||
|
Product specification |
|||||||
|
model |
Built-in sound |
voltage |
current |
weight |
volume |
color |
|
|
CS116WA-M |
WS - warning note 12 |
DC12V |
2.211A |
2.67Kg |
120dB |
Speaker: red-R |
|
|
WP - 12 special warning sound |
DC24V |
1.056A |
120dB |
Housing: Red -R |
|||
|
WM - music 20 note |
AC110V |
0.257A |
2.96Kg |
116dB |
|
||
|
WA - alarm 20 note |
AC220V |
0.133A |
113dB |
|
|||
|
WV - voice channel 10 |
AC380V |
0.092A |
118dB |
|
|||
|
The factory default is: power control, and special product voltage (48V, 440V, etc.) can be customized |
|
||||||
|
* Installation drawing shape |
|
Connection method |
|||||
|
|
1. The AC power supply products: no points are negative, connect the power supply directly. |
||||||
|
2. DC DC power supply products: black wire terminals connected to the negative (-). |
|||||||
|
3. In order to more secure connection, the power cord end use cold terminals "O" type "U" type |
|||||||
|
Customized products (type - LC) leads to the power cord and signal lines. |
|||||||
|
1. Draw out the power cord specification: UL1015 - NO18 2 c (0.75 sq) x 400 mm |
|||||||
|
2. Lead to signal wire specifications: UL1007 - NO. 22 (0.3 sq) 400 mm |
|||||||
|
*The signal selection and connection method |
|||||||
|
Standard form: - make use of the internal switch |
Optional form (K): - using the panel selector switch |
The choose and buy form (LC) : - use the external contact control |
|||||
|
|
|
|
|||||
|
Users should read the instructions carefully and refer to the product structure of follow proper use. |
|||||||
|
Voice species selection method |
|||||||
|
1.The products within the 12 species and 20 kinds of alarm music selection, standard product (using internal selection Voice selector switch) can tone selector switch (figure) on type selection sound |
|||||||
|
2. Use external contact Tone selection method is wiring custom type products (-LC), the type of items selected from the reference image tone. |
|||||||
|
3. This product has a volume control circuit board inside the device (left). Regulator in the clockwise direction of rotation, the volume increases, rotating counterclockwise direction to reduce the volume. |
|||||||
|
* Model Options |
|||||||
|
CS116WA |
- M - |
- WS - |
220 - |
- (LC) |
- K |
||
|
model |
Speaker power |
Voice Category |
Voltage |
Sound choice |
Sound control |
||
|
CS116WA |
D-116DB |
WS(Warning tone) |
12-DC12V |
No specification (None) internal selector switch |
None - Standard |
||
|
WP(Warning tone) |
24-DC24V |
K- switch control |
|||||
|
M-120DB |
WM(Musical tone) |
110-AC110V |
LC designated (Oder) External contact control |
V- external volume control |
|||
|
WA(Alarm tone) |
220-AC220V |
KV- switch control and external volume control |
|||||
|
WV10 (10 segments voice signal) |
380-AC380V |
||||||
