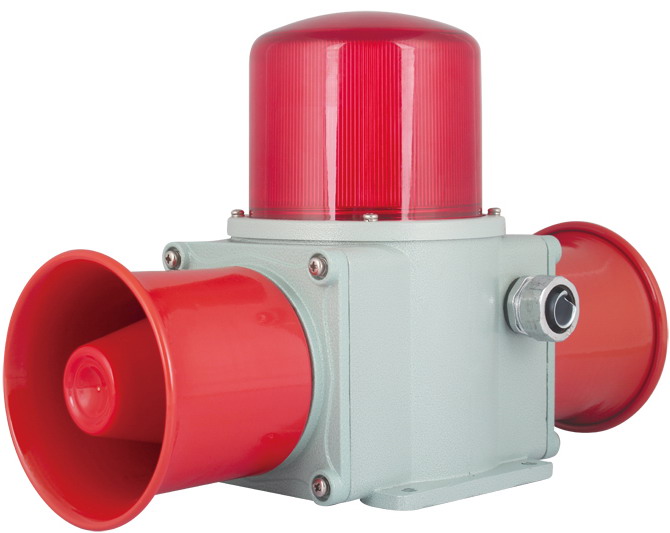

TLRHD2L, dual speakers, heavy duty, industrial sound and light alarm

Sound and light combination warning lights, industrial, heavy duty, marine products

Highlight LED light emitting diode 120DB*2

Product Features

1. design of dual speakers clear loud alarm sound, strong and durable industrial, heavy duty, marine products, configure the sound in a different direction in the opposite direction hear more clearly.

2. using technology independent design, LED light/flashing warning lights, lights and speakers sound and light combination combination constitutes a heavy load

3. available in different alarm tones. (12 beep) (20 kinds of music + beep)

4. internal distribution of products with a tone selector switch and the volume regulator, users can adjust the tone and volume of the market size, detailed options shown in the table below

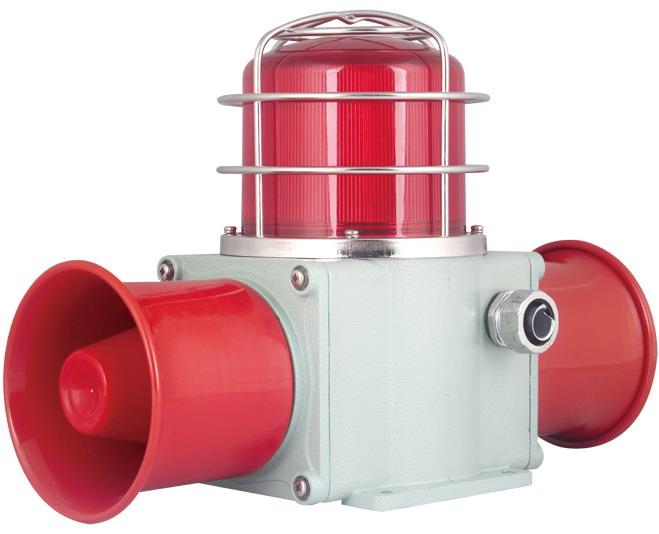

5. According to user needs to install stainless steel protection grid

6. suitable for all kinds of cranes, road, crane and conveyor equipment, ports, ship machinery, iron and steel industry, petrochemical industry, such as outdoor equipment

7. lamp color: Red-R, yellow-Y, green-G blue-B

8. shiny number: 60~80/MIM

9. volume: Max.120dBx2

10. materials: Lampshade for PC, DIECAST body-die-cast aluminum Al, trumpet shell: (PC plastic party horn, trumpet-SUS316L), mirror-heat-resistant ABS

11. certification: CE, KIMM, ABS

12. protection class: IP56

13. this product can be installed to protect network according to customer demand, standard products do not contain protection network

14. picture product installation waterproof connectors, install the product that ships with stuffing can be customized

Product Specifications

model

Built-in sound

voltage

current

weight

flashe

Color

TLRHD2L

WS-Warning tones-12

DC12V

2.353A

4.30Kg

120dB×2

RED-R

WP-Sirens sound 12-tone

DC24V

 1.987A

120dB×2

YELLOW-Y

TLRHD2LF

20 WM-music sound sound

AC110V

 0.572A

4.57Kg

120dB×2

GREEN-G

WA-Sirens sound-20

AC220V

 0.281A

120dB×2

BLUE-B

WV-voice channel 10

AC380V

0.197A

113dB×2

White-W

Super bright LED (HL) product that ships with bronze shell products (Brass) and a special voltage (48V, 440V etc) can be customized

* Overall installation diagram

* Wiring

Power cord into port (CABLE ENTRY)

1. using a gland or ship with stuffing

2. power cord inlet: standard specification: PF 1/2

3.  PF 3/4  to introduce a population size can be customized

Wiring

1.AC AC power supply: without polarity directly connected to the power.

2.DC DC power supply:-black terminal connected to the negative (-).

3. for a more secure connection, ends of the power cables using cold press terminal block "o", "u"

Customized products (-LC) leads to the power cord and signal cable.

1. lead power cord specification: UL1015-NO18 (0.75sq) x 2c

2. exit signal specifications: UL1007-NO.22 (0.3SQ) 400mm

* Use notices

1. this product is waterproof, dust-proof structure of products for outdoor, connect the power cord or other switches jobs, when disassembling, assembling various parts of the fixing bolts must be tightened to ensure product properties of waterproof and dustproof.

2. power cord inlet used for waterproofing joints or explosion-proof joints, guarantee the sealing ability of products. Entrance of the enclosed power supply cable is not placed in the cold air outside, intrusion of foreign bodies such as damage due to moisture or dust.

3. using voltage than the rated voltage up or down too sharply will shorten the life or cause the product to adverse issues. Please ensure that the voltage range of the rated voltage within ± 5%.

4. the shade or the surface of the body, contact with corrosive chemicals will lead to deformation or damage product issues such as fading, users should pay special attention.

5. do not give product strong impacts, it can become part of the cause of the damage or circuit breaker

6. do not force exposed wires on the product lengthens. Product failures due to this is one of them.

* Signal selection and connection method

Tone types selection methods

Purchase form (LC):-use of external contact control

Standard form:-the use of an internal switch

1. this product has 12 alarms and 20 kinds of music options, standard product (using an internal selection tone selector switch) can take advantage of the sound on selector switch (left), select audio type

2. use of external contacts choose tone-customized products (-LC) wiring, refer to the picture on the left content types for the selected sound.

Method of adjusting volume

1. this product has a volume control device on an internal circuit board (left). Adjuster, rotate in the clockwise direction, the volume increased, counterclockwise rotation in the direction of the volume decrease.

Please carefully read the user manual and refer to the chart in the right ways.

* Lights shining light/select

For your convenience, shining light/select switch on the mounting plate. Want to carefully read the instructions and refer to the product structure in the right ways.

1. lamp cover (safety net) separation: holding rings that hold the cover (safety net) bolts (M4 bolts 4EA) unscrew and separate shade holding rings (safety net) and shade, confirm that shining light/select switch on the LED circuit board. (Figure below)

2. light/bright switch selector:

A). light/bright switch selector, select the desired action

B). time switch • position on.

C). in the LF position when shining.

* Model Selection

TLRHD2L    -

WS   -

220   -

R -

P-

LC

Model

Sound

Voltage

Color

Protective cover

tone  select

TLRHD2L(Long bright)

WS (warning tone)

12-DC12V

RED-R

Not specified (None) without guard nets

Not specified (None) select internal drive

TLRHD2LF(Brilliant)

WP (warning tone)

24-DC24V

YELLOW-Y

TLRHD2LR(Rotating lights)

WM (musical sound)

110-AC110V

GREEN-G

P specifies the (Order) with protective finger guard

LC designation (Order) select the external-contact

TLRHD2LS-(LED Frequency shiny)

WA (alarm sound)

220-AC220V

BLUE-B

TLRHD2S(Xenon lamp)

WV (voice signal)

380-AC380V

White-W

TLRHD2HL (LED super bright)
