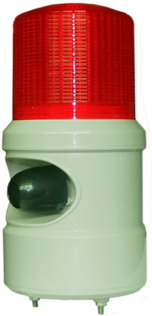

TL100DL, LED high brightness sound and light alarm, alarm sound and light equipment, sound and light alarm device

Collection highlights the functions of LED lights and alarm tones

Bright LED light emitting diode 106DB

Product Features

1. the innovative design, a high loudness horns and warning light as one of sound and light combination products

2. using technology independent design, LED light/flashing caution light. flexibility to choose working mode

3. economical and industrial safety warning products, excellent value for money.

4. internal distribution of products with a tone selector switch and the volume regulator, users can adjust the tone and volume of the market size, detailed options shown in the table below

5. According to user needs customized voice broadcast special voice, yelled, recording, remote control, infrared, sound and light control and other functions.

6. suitable for a variety of production equipment cranes, industrial automation field alerts, Lane, cranes, transport equipment, iron and steel industry, automated production lines, machine, parking equipment, outdoor equipment,

7. lamp color: Red-R, yellow-Y, green-G, blue--B, white-w

8. shiny number: 60~80/MIM

9. volume: Max.106dB

10. materials: Lampshade-AS body-ABS, trumpet shell: ABS, reflector-heat-resistant ABS

11. the technical certification: CE,

12. protection class: IP54

13.remote control, light control, infrared control, power sound and light alarm, battery sound and light alarm, voice prompts, and other special requirements can be customized according to user requirements

Product Specifications

model

Built-in sound

voltage

current

weight

volume

Color

TL100DL

WS-Warning tones-12

DC12V

 0.476A

0.95Kg

106dB

RED-R

WP-Sirens sound 12-tone

DC24V

0.395A

106dB

YELLOW-Y

20 WM-music sound sound

AC110V

 0.257A

1.33Kg

106dB

GREEN-G

WA-Sirens sound-20

AC220V

 0.136A

106dB

BLUE-B

WV-voice channel 10

AC380V

0.111A

98dB

White-W

Super bright LED (HL), products, products and special voltage (48V, 440V etc) can be customized

* Overall installation diagram

* Wiring

Power cord into port (CABLE ENTRY)

1. the use of explosion-proof packing

2. the mains inlet: standard: one-second PF

3. introduction PF three-fourths size can be made

Wiring

1.AC AC power supply: without polarity directly connected to the power.

2.DC DC power products: black terminal connection in the negative (-).

3. for a more secure connection, ends of the power cables using cold press terminal block "o", "u"

Customized products (-LC) leads to the power cord and signal cable.

1. led power cord specification: UL1015-NO18 (0.75sq) x 2c

2. led signal cable specifications: UL1007-NO.22 (0.3SQ) 400mm

* Precautions when using

1. this product is waterproof, dust-proof structure of products for outdoor, connect the power cord or other switches jobs, when disassembling, assembling various parts of the fixing bolts must be tightened to ensure product properties of waterproof and dustproof.

2. power cord inlet used for waterproofing joints or explosion-proof joints, guarantee the sealing ability of products. Entrance of the enclosed power supply cable is not placed in the cold air outside, intrusion of foreign bodies such as damage due to moisture or dust.

3. using voltage than the rated voltage up or down too sharply will shorten the life or cause the product to adverse issues. Please ensure that the voltage range of the rated voltage within ± 5%.

4. the lamp housing or the surface of the body, when exposed to corrosive chemical substances can damage the product cause deformation or discoloration problems, users need to pay special attention to.

5. do not give the product strong impacts, which will cause damage to parts or circuit breaker

6. do not force exposed wires on the product lengthens. Product failures due to this is one of them.

* Signal selection and connection method

Tone types selection methods

Purchase form (LC):-the use of external contact control

Standard form:-with internal switch

1. this product has 12 alarms and 20 kinds of music options, standard product (using an internal selection tone selector switch) can take advantage of the sound on selector switch (left), select audio type

2. use of external contacts choose tone-customized products (-LC) wiring, refer to the picture on the left content types for the selected sound.

Method of adjusting volume

1. this product has a volume control device on an internal circuit board (left). Adjuster to rotate in the clockwise direction, increase the volume, counterclockwise rotation in the direction of reducing the volume.

Please carefully read the user manual and refer to the chart in the correct method of operation.

* Lights shining light/select

For your convenience, shining light/select switch on the mounting plate. Want to carefully read the instructions and refer to the product structure in the right ways.

1. lamp cover (safety net) separation: holding rings that hold the cover (safety net) bolts (M4 bolts 4EA) unscrew and separate shade holding rings (safety net) and shade, confirm that shining light/select switch on the LED circuit board. (Figure below)

2. light/bright switch selector:

A). light/bright switch selector, select the desired action

B). time switch • position on.

C). in the LF position when shining.

*Model Selection

TL100DL    -

WS   -

220   -

R -

LC

Model

Sound

Voltage

Color

tone  select

TL100DL(LED Long bright)

WS-Warning tones-12

12-DC12V

RED-R

Not specified (None) select internal drive

TL100DLF(LED Brilliant)

WP-Sirens sound 12-tone

24-DC24V

YELLOW-Y

TL100DLR(LED Rotating lights)

20 WM-music sound sound

110-AC110V

GREEN-G

LC designation (Order) select the external-contact

TL100DS(Xenon lamp)

WA-Sirens sound-20

220-AC220V

BLUE-B

TL100DLS(LED Strobe)

WV-voice channel 10

380-AC380V

White-W
