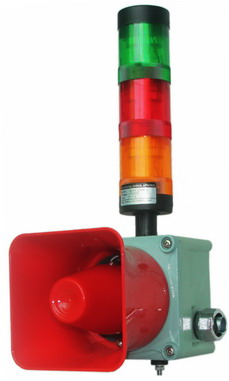

TLTD50L, Multilayer, LED multicolor industrial sound and light alarm, multi-signal, high-power sound and light alarm

Die-cast aluminum alloy shell / durable

High brightness, long life, LED light 118DB

Product Features

1.Super bright LED lights laminated diameter 50mm, multi warning lights

2.1 layer (red), 2 layer(red and green),  3 layer(red, green and yellow),  4 layer (red-green-yellow-blue)

3. solid, durable industrial, heavy duty, ship products

4. introduction of independent design, LED light/flashing warning lights and lights in combination with speakers constitute a heavy load sound and light combination products

5. aluminum alloy Base, 3XM5 screw mounting, the installation is simple and practical.

6. tone selector switch and internal distribution of products containing the volume regulator, users can be adjusted according to the demand of pitch and volume, detailed selection see table

7. wall-mounted can be selected according to user needs.

8. suitable for all kinds of industrial equipment, production machinery, cranes, road, crane and conveyor equipment, ports, ship machinery, iron and steel industry, petrochemical industry, such as outdoor equipment

9. lamp color: Red-R, yellow-Y, green-G, blue--B, white-w

10. shining times: 60~80/MIM

11. volume: Max.118dB

12. materials: Lampshade for PC, DIECAST body-die-cast aluminum Al, trumpet shell:-ABS

13. certification: CE.

14.protection class: IP56.

15. remote control, light control, infrared control, power sound and light alarm, battery sound and light alarm, voice prompts, and other special requirements can be customized according to user requirements

Product Specifications

model

Built-in sound

voltage

current

weight

volume

Color

TLTD50L(Long bright)

WS-Warning tones-12

DC12V

 1.170A

3.56Kg

118dB

RED-R

WP-Sirens sound 12-tone

DC24V

0.995A

118dB

YELLOW-Y

TLTD50LF(Brilliant)

20 WM-music sound sound

AC110V

 0.272A

3.89Kg

118dB

GREEN-G

WA-Sirens sound-20

AC220V

 0.131A

116dB

BLUE-B

WV-voice channel 10

AC380V

0.099A

113dB

White-W

Super bright LED (HL) product that ships with bronze shell products (Brass) and a special voltage (48V, 440V etc) can be customized

* Overall installation diagram

* Wiring

Power cord into port (CABLE ENTRY)

1. the use of explosion-proof packing

2. the mains inlet: standard: one-second PF

3. introduction PF three-fourths size can be made

Wiring

1.AC AC power supply: without polarity directly connected to the power.

2.DC DC power products: black terminal connection in the negative (-).

3. for a more secure connection, ends of the power cables using cold press terminal block "o", "u"

Customized products (-LC) leads to the power cord and signal cable.

1. led power cord specification: UL1015-NO18 (0.75sq) x 2c

2. led signal cable specifications: UL1007-NO.22 (0.3SQ) 400mm

* Precautions when using

1. this product is waterproof, dust-proof structure of products for outdoor, connect the power cord or other switches jobs, when disassembling, assembling various parts of the fixing bolts must be tightened to ensure product properties of waterproof and dustproof.

2. power cord inlet used for waterproofing joints or explosion-proof joints, guarantee the sealing ability of products. Entrance of the enclosed power supply cable is not placed in the cold air outside, intrusion of foreign bodies such as damage due to moisture or dust.

3. using voltage than the rated voltage up or down too sharply will shorten the life or cause the product to adverse issues. Please ensure that the voltage range of the rated voltage within ± 5%.

4. the lamp housing or the surface of the body, when exposed to corrosive chemical substances can damage the product cause deformation or discoloration problems, users need to pay special attention to.

5. do not give the product strong impacts, which will cause damage to parts or circuit breaker

6. do not force exposed wires on the product lengthens. Product failures due to this is one of them.

* Signal selection and connection method

Tone types selection methods

Purchase form (LC):-the use of external contact control

Standard form:-with internal switch

1. this product has 12 alarms and 20 kinds of music options, standard product (using an internal selection tone selector switch) can take advantage of the sound on selector switch (left), select audio type

2. use of external contacts choose tone-customized products (-LC) wiring, refer to the picture on the left content types for the selected sound.

Method of adjusting volume

1. this product has a volume control device on an internal circuit board (left). Adjuster to rotate in the clockwise direction, increase the volume, counterclockwise rotation in the direction of reducing the volume.

Please carefully read the user manual and refer to the chart in the correct method of operation.

* Lights shining light/select

For your convenience, shining light/select switch on the mounting plate. Want to carefully read the instructions and refer to the product structure in the right ways.

1. lamp cover (safety net) separation: holding rings that hold the cover (safety net) bolts (M4 bolts 4EA) unscrew and separate shade holding rings (safety net) and shade, confirm that shining light/select switch on the LED circuit board. (Figure below)

2. light/bright switch selector:

A). light/bright switch selector, select the desired action

B). time switch • position on.

C). in the LF position when shining.

*Model Selection

TLTD50L

 - WS   -

220   -

R

LC

Model

Sound

Voltage

Color

tone  select

TLTD50L(Long bright)

WS-Warning tones-12

12-DC12V

RED-R

Not specified (None) select internal drive

WP-Sirens sound 12-tone

24-DC24V

YELLOW-Y

TLTD50LF(Brilliant)

20 WM-music sound sound

110-AC110V

GREEN-G

LC designation (Order) select the external-contact

WA-Sirens sound-20

220-AC220V

BLUE-B

WV-voice channel 10

380-AC380V

White-W
